E-Shock HT - shock-waves therapy - 12850

The new E-Shock HT is an innovative device for performing extra-corporeal shock-waves therapy.

The electropneumatic system requires almost no maintenance. Usually, a simple regeneration of the applicator and a general check of the instrument itself is necessary.

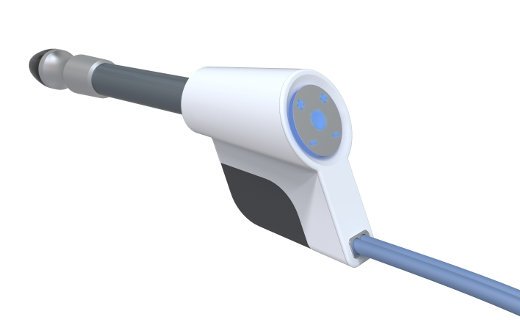

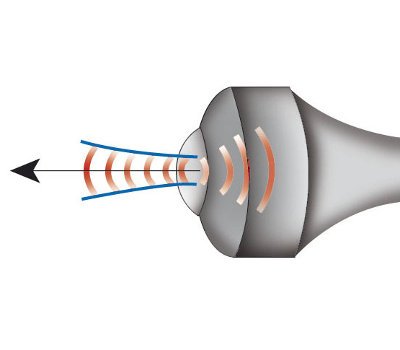

The "Large-Focus" shock-wave applicator is capable to generate and transmit mid and high energy shock-waves into the different cellular layers, respecting the patient’s comfort.

All the functions are visualized on a large color LCD. In addition to the usual and traditional keys and buttons, it is possible to adjust every parameter on the touchscreen.

The versatile Windows CE operating system ensures possible upgrading.

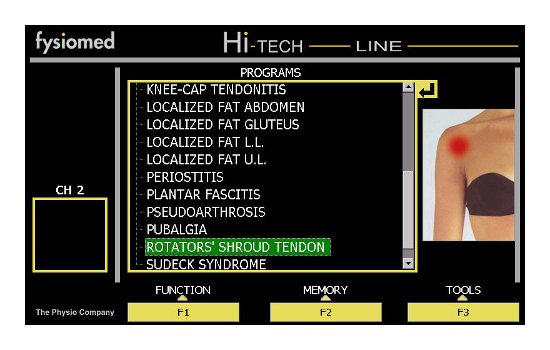

A wide range of preset protocols with body maps is available. After a pathology is chosen, the screen will show the body parts to be treated and the unit will suggest the parameter values to set.

Free memories for entering customized protocols.

Technical Features

• max. pressure: 5 bar
• frequency: 1 to 15 Hz
• emission mode: Large Focus
• max. penetration of focus: ± 55 mm
• max. penetration of shock-wave: ± 70 mm
• wheeled frame with drawers
• color touchscreen 400x800 pixels
• power supply: 115-230 V~ 50/60 Hz
• consumed power: 1000 VA
• dimensions: 40 x 30 x 90 cm
• safety class: class I type BF according to IEC 601-1
• Directive EEC 93/42: IIb
• marking: CE 1639
