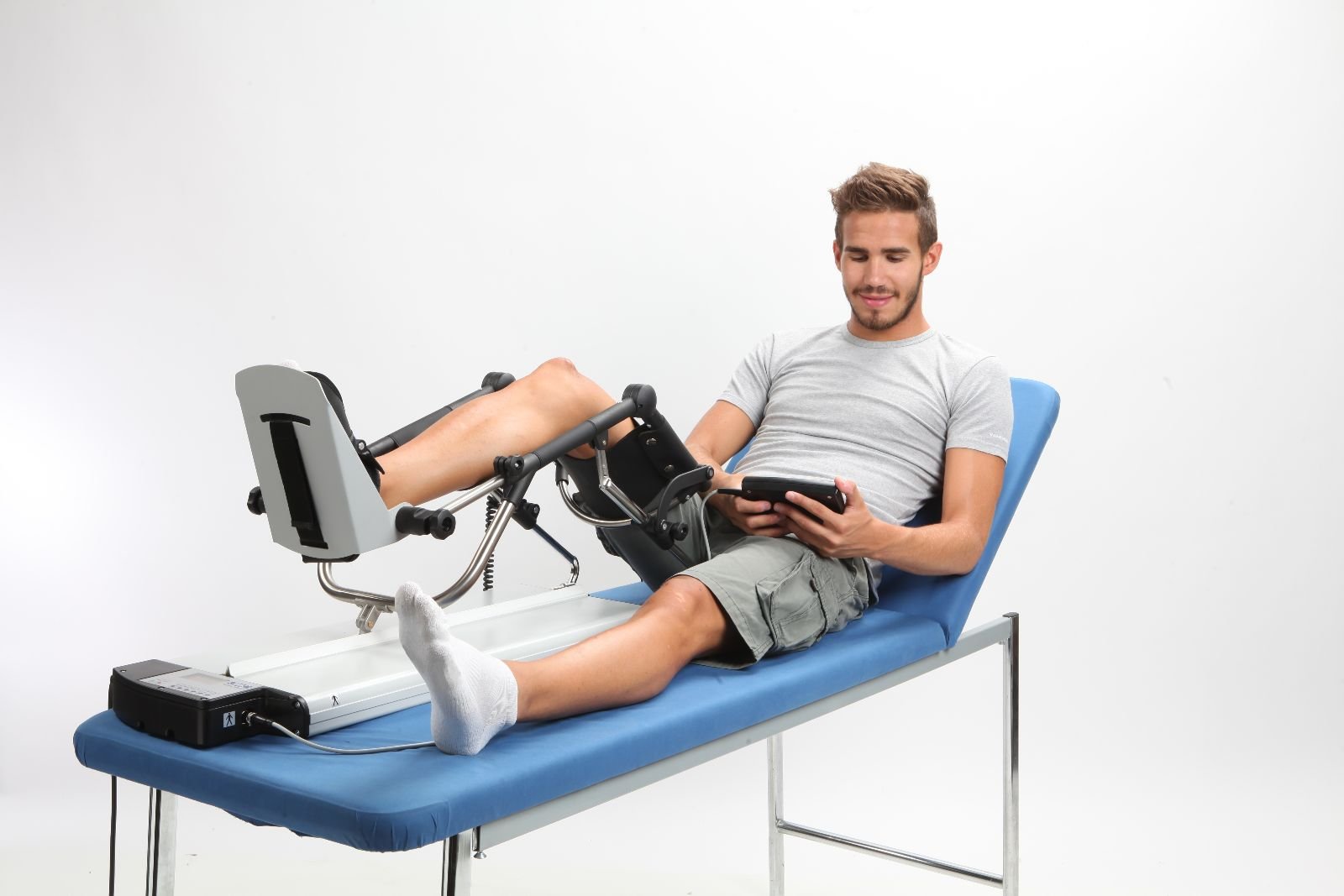

Fisiotek 3000 E – knee and hip CPM device

Description

Fisiotek 3000 E mobilises the knee and hip by flexion-extension. Positioning is based on the length of the patient’s femur; limbs with a femur length from 32 cm to 49 cm can be rehabilitated. At only 9,5 kg the device is easy to manoeuvre.

The device can be programmed from the control console or from the hand-held programmable keypad. Both show self-explanatory graphic symbols, and the programmable features let therapy be customised to different rehabilitation needs.

The hand-held keypad carries all the programming keys plus START and STOP, so the patient can take an active part in therapy where that is possible. The keypad and the remote-controlled START & STOP handset are interchangeable and use the same connector.

Engineering data

• Power supply: 85 ÷ 260 V ~ 50 ÷ 60 Hz
• Electrical safety: Class I B, standard EN 60601-1
• Electromagnetic compatibility: Group 1 Class B, standard EN 60601-1-2
• Classification according to Dir. EEC 93/42: Class IIa
• Weight: 9,5 kg

Programmable functions

• Knee flexion-extension range: -10° to 120°
• Hip movement range: 7° to 115°
• Flexion speed
• Force: 0 to 40 kg
• Working time
• Pause in flexion
• Warm-up
• Flexion and extension limit repetitions
• Adjustable foot support for comfortable ankle positioning

Accessories

• Hand-held programmable keypad
• Remote-controlled START & STOP
• Trolley for internal use

When should it be used

• Surgical repair of the knee’s extensor mechanism
• Meniscectomies and meniscal sutures
• Surgical treatment of fractures and pseudoarthrosis
• Osteotomy
• Artificial hip and knee
• Arthrolysis

Why choose it

Fisiotek 3000 restores joint movement in both surgically and non-surgically treated conditions, so it suits a wide range of patients. The frame uses aluminium and stainless steel for dependability over time, and every model in the 3000 line has a Warm Up feature that warms the joint before therapy proper begins.
