Multistim HT VAC - 20610
The new Multistim HT VAC is an advanced and complete universal electrotherapy device made for professional users, with 2 independent patient circuits and built-in vacuum module .
Price on request
Prices and delivery times depend on the configuration. Need advice? Call +420 739 209 421 or write to info@fysiomed.eu.
Description
Low frequency currents:
biphasic, Tens, diadynamic (50-100Hz – CP, LP, 50 Hz and 100 Hz interrupted), rectangular, triangular, exponential, galvanic, galvanic interrupted, ionophoresis, faradic (triangular, rectangular, neodyn), Trabert, ultra-reiz
Medium frequency currents:
IF bipolar, IF quadripolar, IF isoplanar, IF vectorial, MF stimulation, isodynamic, Kotz

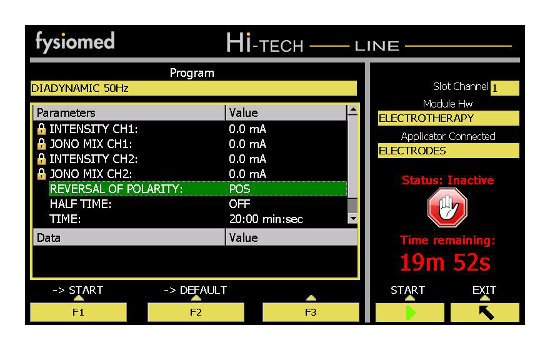

All the functions are visualized on a large color LCD. In addition to the usual and traditional keys and buttons, it is possible to adjust every parameter on the touchscreen.
The versatile Windows CE operating system ensures possible upgrading.

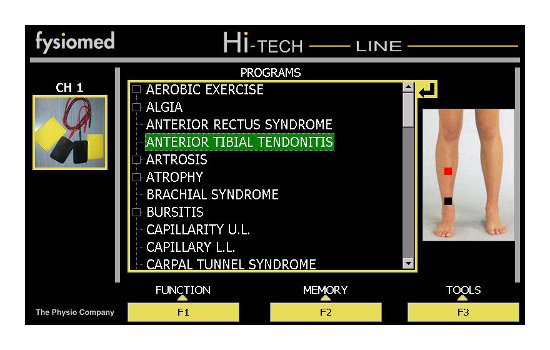

A wide range of preset protocols with body maps is available for setting most important therapies into the fields of physical therapy, sports medicine, orthopedics, vascular and aesthetic medicine.
After a pathology is chosen, the screen will show the body parts to be treated and the unit will suggest the parameter values to set.
Free memories for entering customized protocols.
Technical data
- 2 independent patient circuits
- max. intensity: • low frequency currents: 76,5 mA (153 mAp) • medium frequency currents: 127 mA (153 mAp)
- frequency from 2,5 to 20 kHz

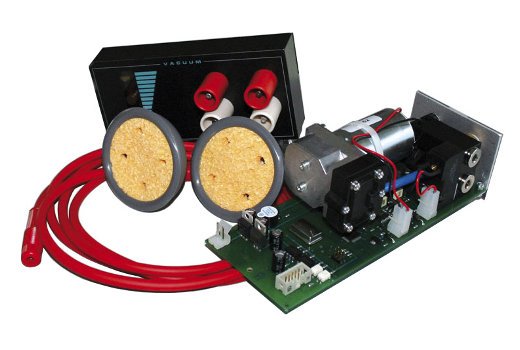

- vacuum module: • continuous or pulsed mode • double output allowing bipolar or quadripolar application • pressure: 0,6 bar
- color touchscreen 400x800 pixels
- power supply: 115-230 V~ 50/60 Hz
- consumed power: 80 VA
- dimensions: 40 x 30 x 23 cm
- safety class: class I type B according to IEC 601-1
- Directive EEC 93/42: IIa
- marking: CE 1639
Accessories
Standard Accessories 37702 - chamex cover nr. 2 37115 - SCR flexible electrode nr. 2 - 4x 37726 - Fysiomed elasto-strap - 90 cm - 2x 37731 - black patient cable - 2x 37732 - red patient cable - 2x 37736 - power cable 37737 - motor point electrode 37787 - vacuum electrode Ø 6 cm - 4x 37789 - moist pad Ø 6 cm - 4x 37792 - red vacuum cable - 2x 37793 - white vacuum cable - 2x
Optional Accessories
20880 - trolley HT Line
Parameters
| Equipment class | Capital equipment |
|---|---|
| Mobility | Trolley-mounted |
Code: 20610
