Fisiotek HP2 – 25040

Description

[et_pb_section bb_built=”1″][et_pb_row][et_pb_column type=”4_4″][et_pb_text]

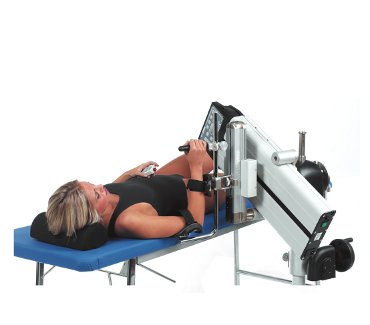

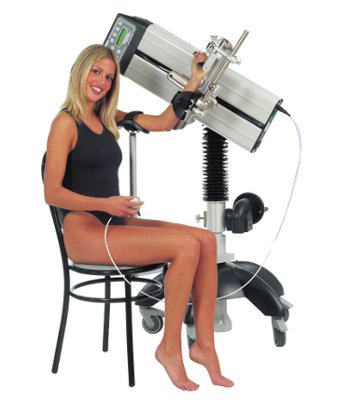

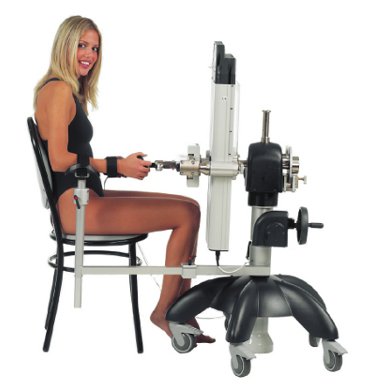

The Fisiotek HP2 is a microprocessor controlled device for the passive mobilisation of the shoulder, and the elbow and wrist with specific accessories. The Fisiotek HP2 has a separate memory card, that stores the operational data of the instrument for each individual patient. This makes instrument preparation easier and faster following the first rehabilitation session for subsequent sessions. The Fisiotek HP2 also has a function defined as “warm-up”, which has the purpose of warming up the treated joint through several movement cycles having a work angle less than the one reached during the previous session.

Movements

1. movements carried out on the shoulder:
   • elevation: 5° – 180°
   • adduction/abduction: 35° – 150°
   • internal/external rotation: 90° – 0° – 90°
2. movements carried out on the elbow:
   • flexo-extension: 0° – 150°
   • pronation/supination: 90° – 0° – 90°
3. movements carried out on the wrist:
   • flexo-extension: 80° – 0° – 80°
   • ulnar & radial deviation: 20° – 0° – 30°

Programmable Functions

• speed in both directions: min. 1,5°/sec – max. 5,5°/sec work time
• treatment time
• automatic increase of the amplitude of movement on both limits
• pause on both limits of movement
• warm-up cycles

Technical Features

• mains supply: 85/260V 50/60Hz
• safety class: class 1B standard EN 60601-2
• CE directive 93/94: class IIa
• weight: 77 kg
