Laser YAG HT

HEALTH: High Energy Advanced Laser THerapy

HEALTH technology represents the new and most advanced approach into the field of modern laser therapy. We are referring to special laser devices capable to transfer the delivered energy through different cellular layers into the affected areas.

The new HEALTH devices generate continuous, pulsed and super pulsed laser light to obtain bio-stimulation and heat effects, which could be non-thermal or step by step warmer.

Categories: ,

Description

[et_pb_section bb_built=”1″][et_pb_row][et_pb_column type=”4_4″][et_pb_text]



All the functions are visualized on a large color LCD. In addition to the usual and traditional keys and buttons, it is possible to adjust every parameter on the touchscreen.

The versatile Windows CE operating system ensures possible upgrading.

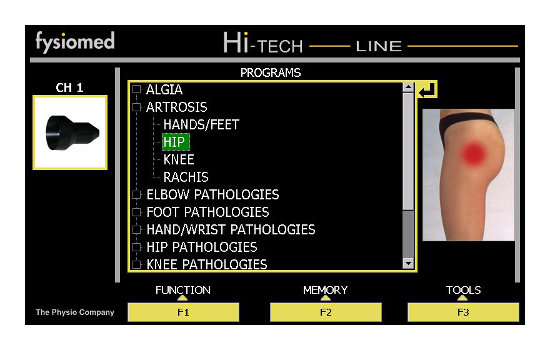

A wide range of preset protocols with body maps is available for setting most important therapies into the fields of physical therapy, sports medicine, orthopedics, vascular and aesthetic medicine.

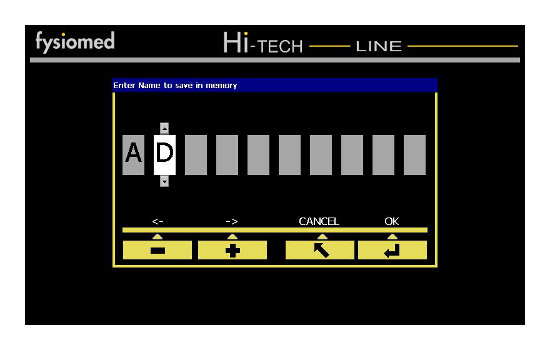

Free memories for entering customized protocols.

Technical Features
  • laser wavelength: 1064 nm, visible 650 nm
  • max. power at the source: 6 W
  • adjustable power from 1,5 W to 5 W
  • emission: continuous, pulsed and super pulsed
  • working modalities: manual or static diffusion
  • automatic calculation of energy density and application time
  • color touchscreen 400 x 800 pixels
  • laser operated by foot pedal
  • power supply: 115-230 V~ 50/60 Hz
  • consumed power: 150 VA
  • dimensions: 40 x 30 x 23 cm
  • safety class: class I type BF according to IEC 601-1
  • Directive EEC 93/42: IIb



Standard Accessories

20782 – laser applicator Ø 2 cm
20783 – laser applicator Ø 6 cm

Optional Accessories

20880 – trolley HT Line
20990 – laser applicator Ø 12 cm
