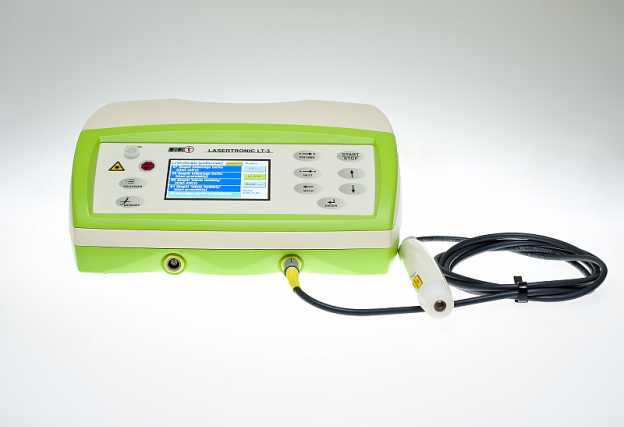

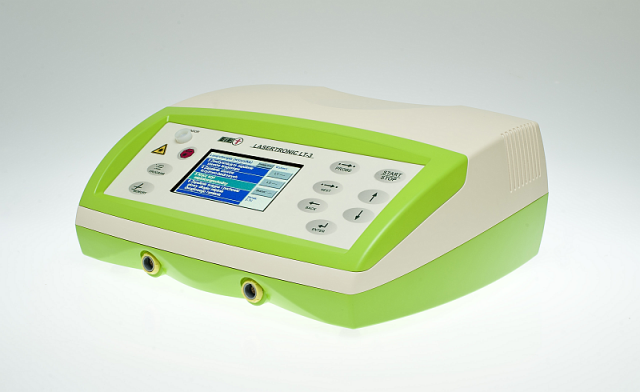

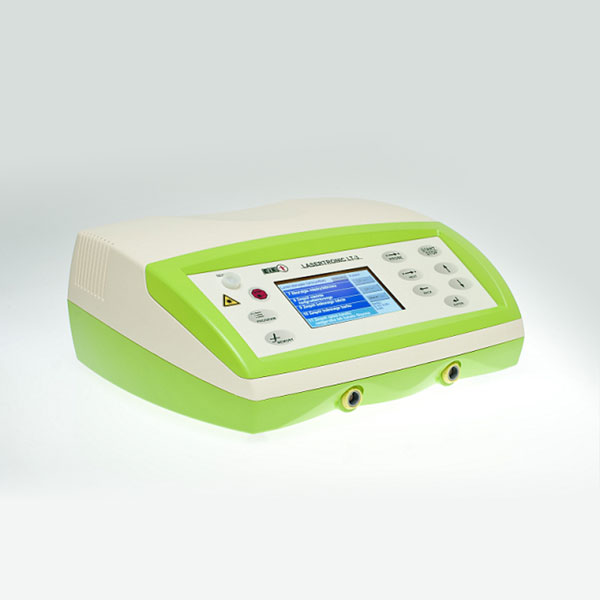

LASERTRONIC LT-3 is modern, microprocessor-controlled bio-stimulating laser.
Application
Stimulating effects of lasers
a) on connective tissues
– blood vessels expansion, improvement of microcirculation, facilitation of collateral circulation, facilitation in resorption of swellings and exudates
– acceleration of epidermization, stimulation of forming granulation
– strengthening of tissues by improvement of collagen synthesis
– growth of osteoblast activity and facilitation of callus formulation
b) on immunity system
– limitation of antigen perception by lymphocytes T (better transplant tolerance)
– stimulation of macrophages migration
c) anti-pain effects
– amplification of endorphin secretion
-influence on alteration of concentration of transmitters in synapses
– hyperpolarisation of nerve cell membranes
– stimulation of regeneration of peripheral axons after nerve damage
– efficient redistribution of protons” energy to neutral acupuncture points
NOTE! There are no significant side effects of biostimulating laser therapy either publicised or known

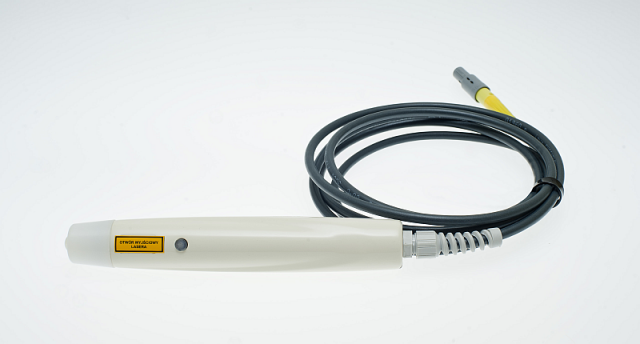

Available laser probes
| Type of probe | Parameters | Modes of work |
|---|---|---|
| S-1N – point IR | 50mW / 905nm | impulse – high power impulse (50W) |
| S-2N – point R | 40mW / 660nm | constant and modulated with average power regulation |
| S-3N – point IR | 400mW / 808nm | constant and modulated with average power regulation |
| SP-1 – cluster R | 360mW / 660nm | constant and modulated with average power regulation |
| SP-2 – cluster R&IR | 840mW / 660nm & 808nm | constant and modulated with average power regulation |
| SP-3 – cluster IR | 1440mW / 808nm | constant and modulated with average power regulation |
| Treatment clock | 1 s. – 99 min |
|---|---|
| Power supply | 230 V / 50 Hz / 50 VA |
| Dimensions | 335 x 270 x 125 mm |
| Weight | 2.5 kg |
| Type of probe | S-1N | S-2N | S-3N |
|---|---|---|---|
| Wavelength | 905 nm | 660 nm | 808 nm |
| Pulse power | 50 W: | 40 mW | 400 mW |
| Frequency | 5-5000Hz | 5-9999Hz | 5-9999Hz |
| Mean power | (0,1–50)mW | (1-40)mW | (1-400)mW |
| Pulse energy | 10 µJ | —- | —- |
| Width of pulse | 200ns | —- | —- |
| Type of probe | SP-1 | SP-2 | SP-3 |
|---|---|---|---|
| Wavelength | 660 nm | 660 nm / 808 nm | 808 nm |
| Number of diodes | 9 | 5 / 4 | 9 |
| Single diode power | 40 mW | 40 mW / 160 mW | 160 mW |
| Total power | 360 mW | 840 mW | 1440 mW |
| Frequency | 5-9999Hz | 5-9999Hz | 5-9999Hz |
| Area of treatment | 50 cm2 | 50 cm2 | 50 cm2 |
