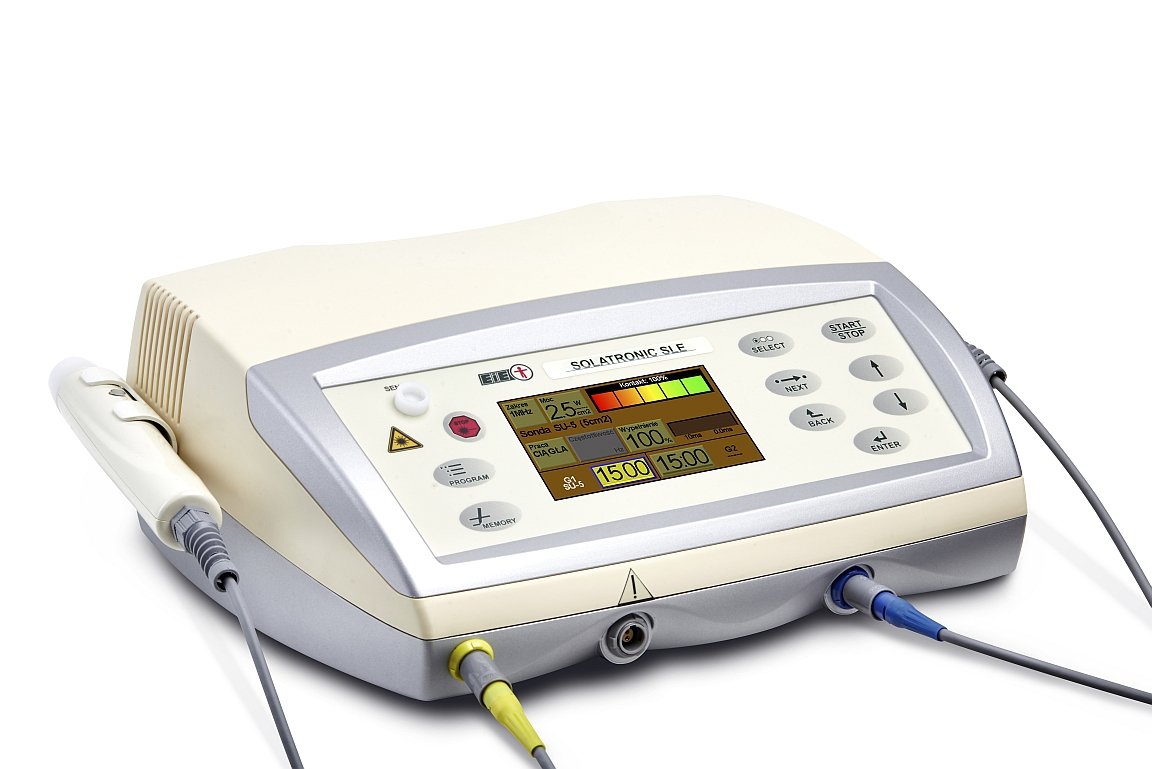

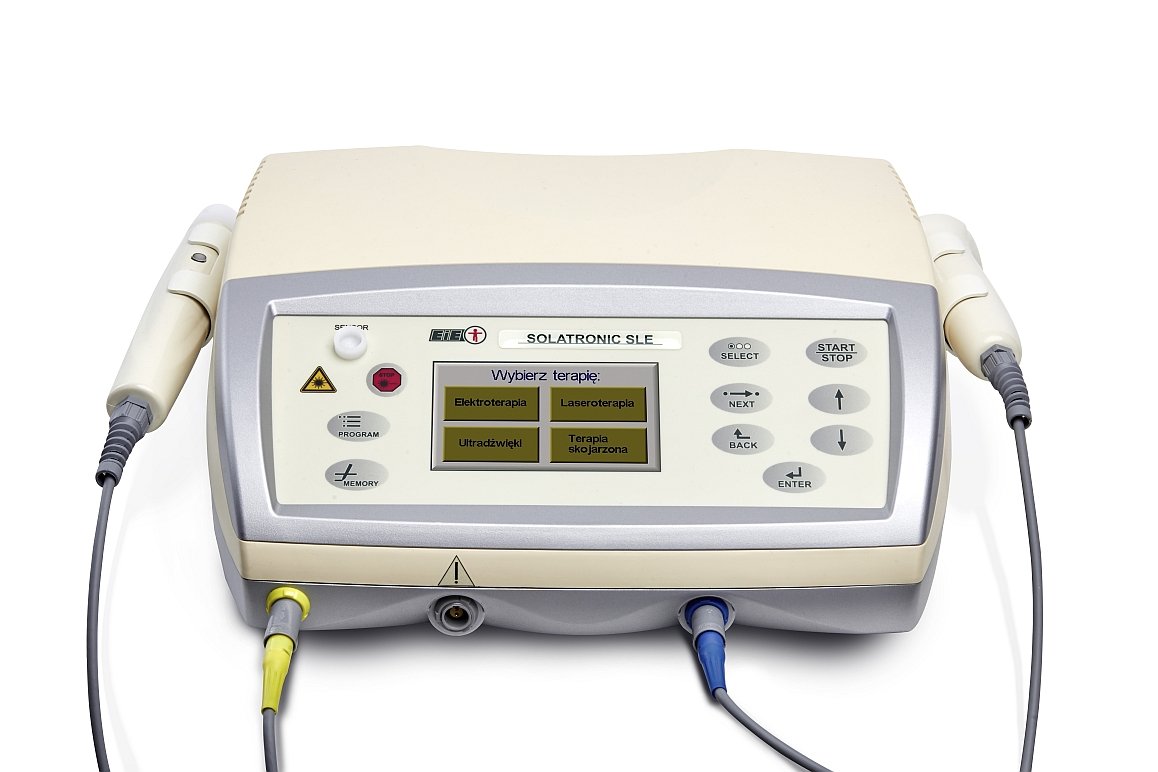

SOLATRONIC SLE

Ultrasound therapy features

• Continuous and pulsed work mode
• Double-frequency probes: 1MHz and 3,3MHz in 5cm2 or 1cm2 size
• Water-resistant probes
• Sound and visual signal of contact of the probe with patient

Electrotherapy features

• Setting of different wave modulations (electro-gymnastics)
• Setting of sequence of diadynamic currents
• User friendly electro-diagnostics (I/t curv points, automatic calculation of coefficients); last 4 tests are stored in the memory

Lasertherapy features

• Continuous and pulsed work mode
• Repeat dose function
• Sensor for power check of probes

ACCESSORIES

Standard

• User’s manual
• set of electrodes, pads, fixing bands
• electrotherapy treatment cable
• therapy gel for ultrasound therapy
• spare fuses
• warning labels

Optional

• Ultrasound heads
• Laser probes: point and cluster models
• protective eyewear for laser treatments
• different types of electrodes and other electrotherapy accessories
• transportation bag

Available ultrasound heads

Type of head	Parameters
SU-1	1,33 cm2 / 1MHz and 3,3MHz
SU-5	5 cm2 / 1MHz and 3,3MHz

Available laser probes

Type of probe	Parameters	Modes of work
S-1N - point IR	50mW / 905nm	impulse – high power impulse (50W)
S-2N - point R	40mW / 660nm	constant and modulated with average power regulation
S-3N - point IR	400mW / 808nm	constant and modulated with average power regulation
SP-1 - cluster R	360mW / 660nm	constant and modulated with average power regulation
SP-2 - cluster R & IR	840mW / 660nm & 808nm	constant and modulated with average power regulation
SP-3 - cluster IR	1440mW / 808nm	constant and modulated with average power regulation

TECHNICAL DATA

Ultrasound parameters

continuous power	2,5W/cm2
peak pulse power	3W/cm2
radiation frequency	1MHz or 3,3MHz
pulse frequency	10-150Hz
duty factor
smooth:	5 – 100%, one step 5%
timer	30sec - 30min

Lasertherapy parameters

class of laser	3B
timer	30sec - 30min

Other parameters

power supply	1-phase net ~230V 10%, 50Hz, 70VA
electric safety class	I type BF
ambient temperature	10°C - 40°C
relative humidity	do 85%
dimensions	335 x 270 x 125 mm
weight (of control unit)	3.5 kg

Technical data of point probes

Type of probe	S-1N	S-2N	S-3N
Wavelength	905 nm	660 nm	808 nm
Pulse power	50 W	40 mW	400 mW
Frequency	5-5000Hz	5-9999Hz	5-9999Hz
Mean power	(0,1–50)mW	(1-40)mW	(1-400)mW
Pulse energy	10 µJ	----	----
Width of pulse	200ns	----	----

Technical data of cluster probes

Type of probe	SP-1	SP-2	SP-3
Wavelength	660 nm	660 nm / 808 nm	808 nm
Number of diodes	9	5 / 4	9
Single diode power	40 mW	40 mW / 160 mW	160 mW
Total power	360 mW	840 mW	1440 mW
Frequency	5-9999Hz	5-9999Hz	5-9999Hz
Area of treatment	50 cm2	50 cm2	50 cm2
