Sonostim HT - 20660

The new Sonostim HT is an advanced and complete device combining 1/3 MHz multifrequency ultrasound and universal electrotherapy made for professional users.

The Sonostim HT is provided with a special ergonomic head capable to generate 1 or 3 MHz frequency but can also combine both frequencies allowing penetration into different cellular layers at the same time. Pulsed and continuous emission up to 15 W (3 W/cm²).

Provided with a special device attesting no-coupling and contact between the head and the patient's skin, with an acoustic and visual signal.

The Sonostim HT has 2 independent patient circuits, allowing application of two different current forms at the same time.

Low frequency currents:
biphasic, Tens, diadynamic, faradic, galvanic, ionophoresis, triangular, ultra-reiz

Medium frequency currents:
IF bipolar, IF quadripolar, IF isoplanar, IF vectorial, MF stimulation, isodynamic, Kotz

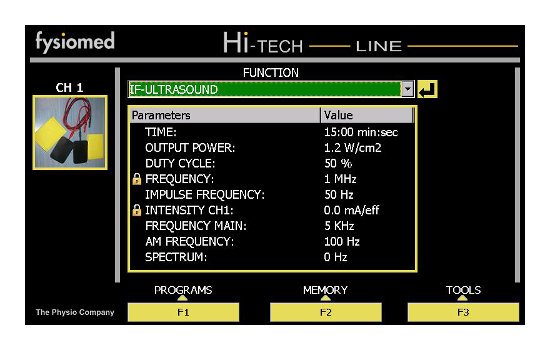

All the functions are visualized on a large color LCD. In addition to the usual and traditional keys and buttons, it is possible to adjust every parameter on the touchscreen.

The versatile Windows CE operating system ensures possible upgrading.

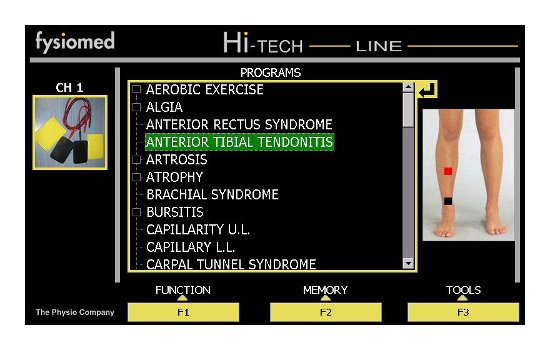

A wide range of preset protocols with body maps is available for setting most important therapies into the fields of physical therapy, sports medicine, orthopedics, vascular and aesthetic medicine.

After a pathology is chosen, the screen will show the body parts to be treated and the unit will suggest the parameter values to set.

Free memories for entering customized protocols.

Technical data

• ultrasound: • 1-3 MHz • continuous and pulsed (from 20% to 80%) • modulation from 1 to 200 Hz • multifrequency head 5 cm² • 3 W/cm² max. • low BNR • contact control
• 2 independent patient circuits
• max. intensity: • low frequency currents: 76,5 mA (153 mAp) • medium frequency currents: 127 mA (153 mAp)
• frequency from 2,5 to 20 kHz
• color touchscreen 400 x 800 pixels
• power supply: 115-230 V~ 50/60 Hz
• consumed power: 80 VA
• dimensions: 40 x 30 x 23 cm
• safety class: class I type B according to IEC 601-1
• Directive EEC 93/42: IIa
• marking: CE 1639

Standard accessories

]20644 - US multi-frequency head 5 cm² 30600 - Sonocol - 250 cc 37115 - SCR flexible electrode nr. 2 - 4x 37702 - chamex cover nr. 2 37726 - Fysiomed elasto-strap - 90 cm - 2x 37731 - black patient cable - 2x 37732 - red patient cable - 2x 37736 - power cable 37737 - motor point electrode
