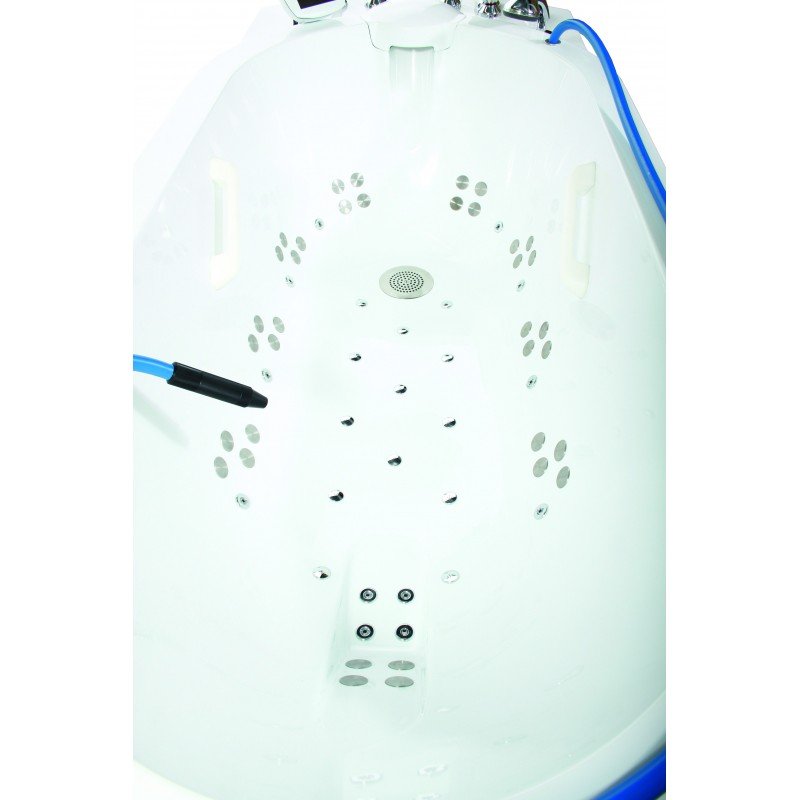

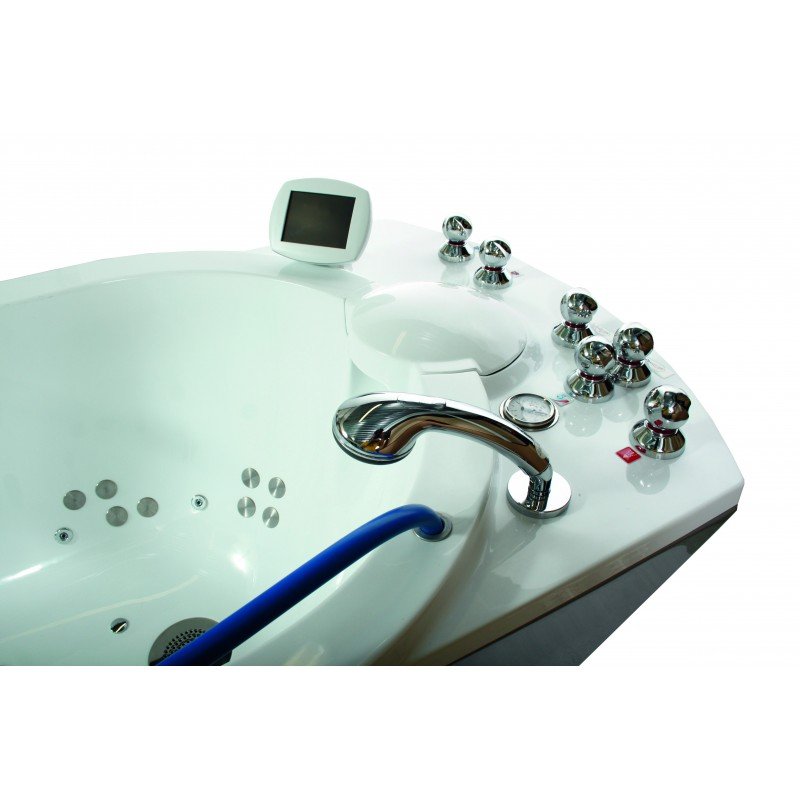

TOLEDO underwater massage and electrotherapy bathtub

Underwater massage and electrotherapy bathtub TOLEDO. Bath tubes are equipped with electrodes made of stainless steel, permanently attached to internal surface of bathtub sides. Operating microprocessor not only delivers galvanic, neovaradic or didynamic currents but also provide safety for treated patients.Bathtub provides also automatic underwater massage treatment performed using massage hose with replaceable tip and ability to control the pressure in the range 0-5,5 bar. Massage can proceed only after 5 minutes of immersion of the patient. This is the time required for complete relaxation of the muscles of the patient.

Properties:

• steel electrodes for electrotherapy treatment made of high quality steel,


• hose for underwater massage with 3 interchangeable tips,


• touch screen control panel,


• two filling levels 120 and 240 liters,


• automatic electronically controlled water drain,


• automatic filling (for 2 levels),


• hand shower,


• innovative overflow protectioned filling system.

Equipment	TOLEDO
Steel electrodes for electrotherapy treatment	YES
Automatic underwater massage – 8 side jets	option
Automatic underwater massage – 6 spine jets	option
Pearl bath system - 14x5 jets	option
Disinfection system	option
Chromotherapy	option
Hand shower	YES
Hose for underwater massage with 3 interchangeable tips	YES
Side hand rails	YES
7” Touch control panel	YES
Automatic filling system	YES
Automatic set of required water level	YES
Automatic release of water - Electronic controlled	YES
Automatic switch off after time of treatment	YES
Pump “dry-working” protection	YES
Failure and phase sequence change protection	YES
Overload protection	YES
Stair for easy climbing into the tub	YES

---

Technocal data:

Capacity: 240 l

Length: 2200 mm

Width: 950 mm

Height: 980 mm

---

Functionality

The whole hydrotherapy produced in our company can be adjusted to your requirements. This includes retrofitting in standard and non-standard systems, changes in the quantities of nozzles or combining them into sections according to your preferences. If you wish to adapt the bath to your needs, please contact us.
All baths companies Technomex have a 3-year warranty with professional servicing.

Accessories and colors

Colours of the devices manufactured by Technomex are consistent with RAL color palette. It is possible to order equipment in one or two colors (inner - bowl, outer - housing). The list below is a list of standard colors, option may be ordered in any RAL color.
