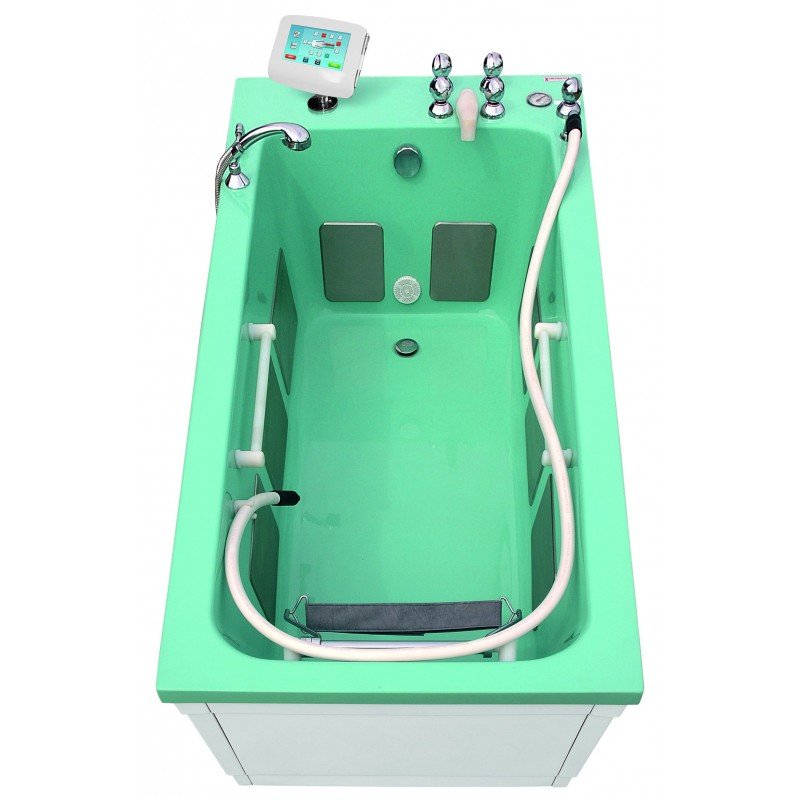

T-UWM/E - Electrotherapeutic Bath Tub

Electrotherapeutic Bath Tub T-UWM/E allows to provide two different ways of treatment in water environment:

• electrotherapy treatment,
• underwater massage

Electrotherapeutic treatment in water has positive effect on various tissues and human body system. It has influence on nervous system and improves blood circulation. Therapist can set polarity for each of 9 electrodes installed on the tub walls and select: galvanic, diadynamic or faradic type of current. All parameters are set on easy operated touck screen control panel. Underwater massage may be performed with hose (with exchangeable nozzles) or system of jets fixed on the tub walls (option).

Properties:

• 9 steel electrodes for electrotherapy treatment made of high quality steel,


• hose for underwater massage with interchangeable tips,


• touch screen control panel,


• automatic filling system,


• hand shower.

Equipment	T-UWM/E
9 steel electrodes for electrotherapy treatment	YES
Automatic underwater massage – 6 side jets	option
Automatic underwater massage – 3 spine jets	option
Pearl bath system - 14x5 jets	option
Disinfection system	option
Hand shower	YES
Hose for underwater massage with 3 interchangeable tips	YES
Side hand rails	YES
Head support	YES
7” Touch control panel	YES
Automatic filling system	YES
Automatic set of required water level	YES
Automatic release of water - Electronic controlled	YES
Automatic switch off after time of treatment	YES
Pump “dry-working” protection	YES
Failure and phase sequence change protection	YES
Overload protection	YES
Stair for easy climbing into the tub	YES

---

Technocal data:

Capacity: 350 l

Length: 2300 mm

Width: 960 mm

Height: 900 mm

---

Functionality

The whole hydrotherapy produced in our company can be adjusted to your requirements. This includes retrofitting in standard and non-standard systems, changes in the quantities of nozzles or combining them into sections according to your preferences. If you wish to adapt the bath to your needs, please contact us.
All baths companies Technomex have a 3-year warranty with professional servicing.

Accessories and colors

Colours of the devices manufactured by Technomex are consistent with RAL color palette. It is possible to order equipment in one or two colors (inner - bowl, outer - housing). The list below is a list of standard colors, option may be ordered in any RAL color.
