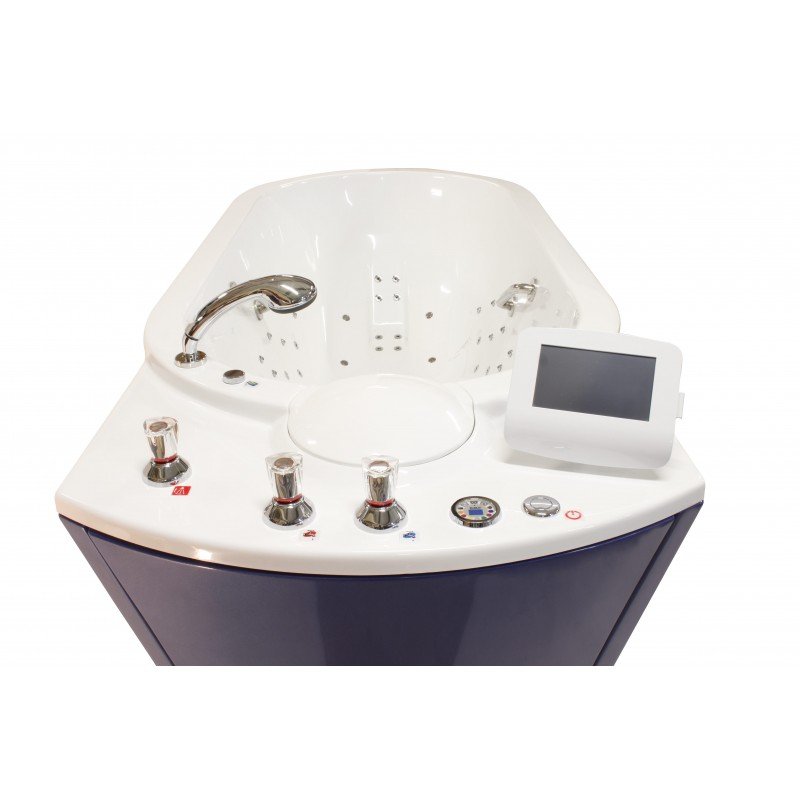

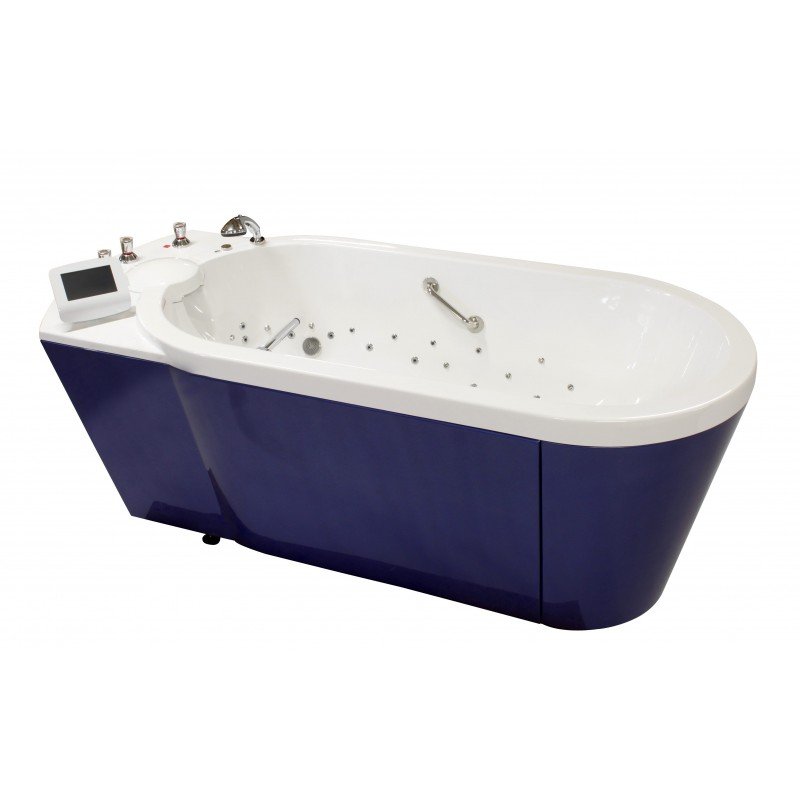

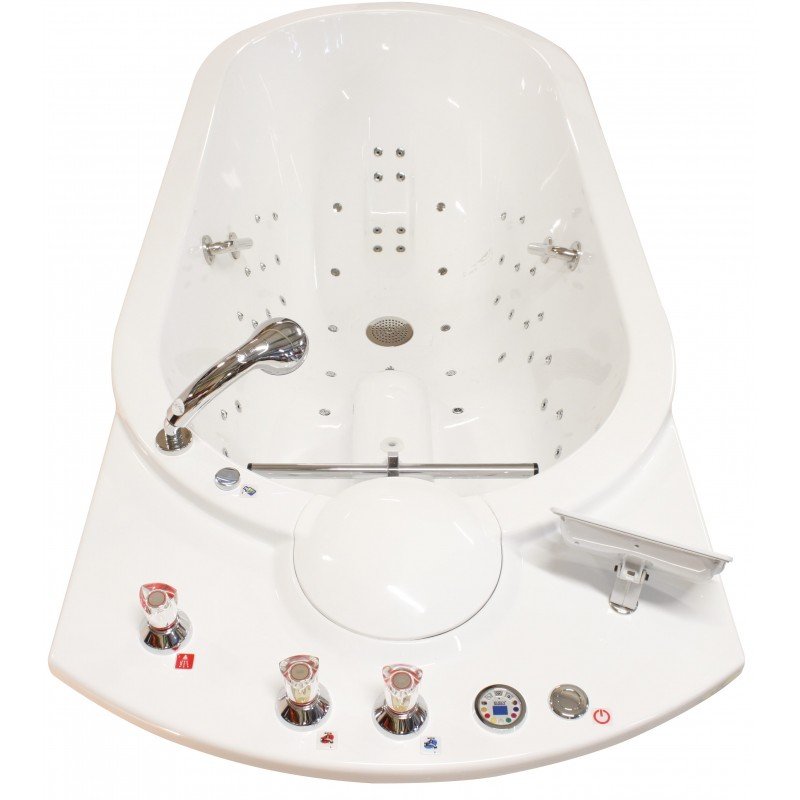

MAGELLAN BASIC - Multifunctional hydrotherapy tub

Magellan Basic - Multifunctional hydrotherapy tub is used to automatic underwater massage, pearl bath and chromotherapy. Magellan can be used to automatic underwater massage. Electronic control panel and special configuration of 34 jets (5 sections: foots, ankle, knees. hips and spine) let for individual programming working sections. Additionally user can release section which he doesn’t want to use during treatment. Magellan multifunctional hydrotherapy tub is equipped with electronic panel lets for programming total time of treatment, time of working particular section, automatic switch off after treatment and enables saving 20 individual programs.

Properties:

• Automatic underwater massage - 34 jets - 5 sections (foots, ankle, knees, hips and spine),


• Pearl bath system - 14x5 jets,


• 7-inch touch control panel,


• two filling levels 110 and 220 liters,


• ability to save therapeutic programs (100),


• switch off of required nozzle sections,


• ability to set the sequence and time separately for each section separately,


• automatic electronically controlled water drain,


• automatic filling (for 2 levels),


• hand shower,


• innovative overflow protectioned filling system.

Equipment	MAGELLAN BASIC
Automatic underwater massage - 34 jets - 5 sections (foots, ankle, knees, hips and spine)	YES
Pearl bath system - 14x5 jets	YES
Chromotherapy	option
Disinfection system	option
Disinfection system using UV lamp	option
Aromatherapy	option
System of keeping temperature/heating up the water in the tub	option
Hand shower	YES
Hose for underwater massage with 3 interchangeable tips	option
Foot support	YES
Side hand rails	YES
7” touch control panel	YES
Automatic filling system	YES
Automatic set of required water level	YES
Automatic release of water - Electronic controlled	YES
Automatic switch off after time of treatment	YES
Pump “dry-working” protection	YES
Failure and phase sequence change protection	YES
Overload protection	YES
Stair for easy climbing into the tub	YES

Technical data:

Capacity: 220 l

Length: 2200 mm

Width: 950 mm

Height: 980 mm

---

Functionality

The whole hydrotherapy produced in our company can be adjusted to your requirements. This includes retrofitting in standard and non-standard systems, changes in the quantities of nozzles or combining them into sections according to your preferences. If you wish to adapt the bath to your needs, please contact us.
All baths companies Technomex have a 3-year warranty with professional servicing.

Accessories and colors

Colours of the devices manufactured by Technomex are consistent with RAL color palette. It is possible to order equipment in one or two colors (inner - bowl, outer - housing). The list below is a list of standard colors, option may be ordered in any RAL color.
