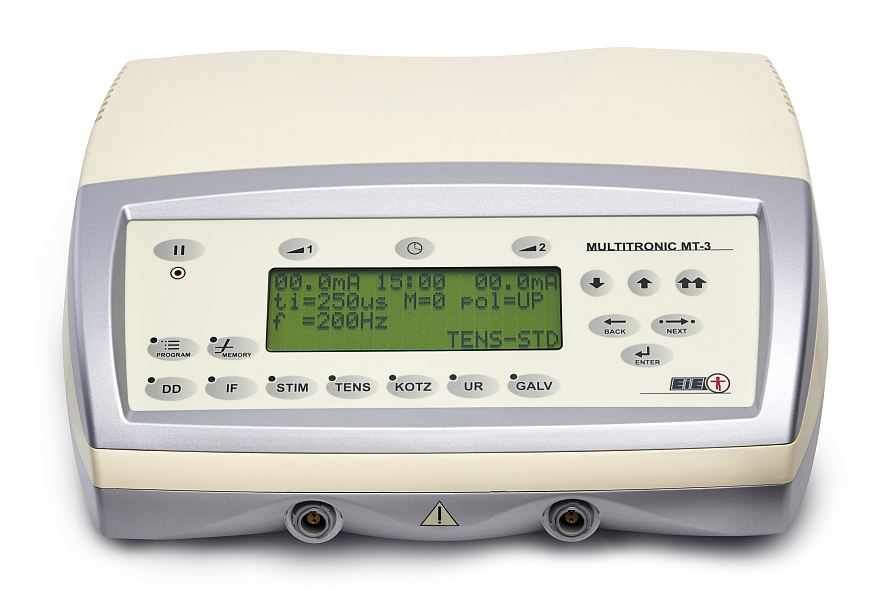

Multitronic MT-3 – electrotherapy unit

Multitronic MT-3 is a universal two-channel electrotherapy unit covering the full range of standard current forms.

Key features

• distinctive design with a customer-selected colour scheme
• highly practical Lemo connectors
• preset treatment parameters for common conditions (over 100 entries)
• individual adjustment of treatment parameters
• user-defined treatment settings (50 entries)
• programmable diadynamic current sequences
• electrogymnastics function with a wide adjustment range
• two treatment circuits (independent amplitude control)
• easy semi-automatic electrodiagnostics (i/t curve plotting, automatic calculation of the coefficients); the last test result stays in memory
• large LCD screen for easy reading of parameters
• open treatment circuit detection
• counters for treatment time and number of treatments

Standard equipment

• user manual
• complete set of electrotherapy accessories
• E-S 50 flat silicone electrode with P-50 viscose pad (4 pcs)
• E-A 75 flat aluminium electrode with P-75 viscose pad (4 pcs)
• K-2L electrode connection cable (2 pcs)
• O-R1 strap, 50 x 500 mm (2 pcs)
• O-R2 strap, 50 x 800 mm (2 pcs)
• mains cable
• fuse T-0.315AL, 250 V (1 pc)

Optional equipment

• electrotherapy accessories
• carrying bag
• trolleys for units and applicators

Current forms

• DIADYNAMIC — mean current for DF: 0-30 mA, for MF: 0-15 mA
• INTERFERENTIAL — RMS current: 0-60 mA, frequency: 1-200 Hz
• STIMULATION — current amplitude: 0-100 mA, pulse amplitude (tonolysis): 0-100 mA, pulse width: 5-990 ms, pause time: 100-4000 ms, delay time (tonolysis): 5-150 ms
• ELECTROGYMNASTICS — pulse time: 0,5-8 s, pause time: 1-16 s, envelope: 0-100%
• TENS and HV — current amplitude: 0-100 mA, frequency: 1-200 Hz, pulse time: 50-250 µs
• KOTZ — current amplitude: 0-100 mA
• TRÄBERT — current amplitude: 0-100 mA
• GALVANIC — current: 0-50 mA

Technical data

• Power supply: 230 V / 50 Hz / 70 VA
• Unit weight: 3 kg

The unit ships with a green housing as standard. A different colour must be specified when ordering; grey-silver is available at no extra charge.
