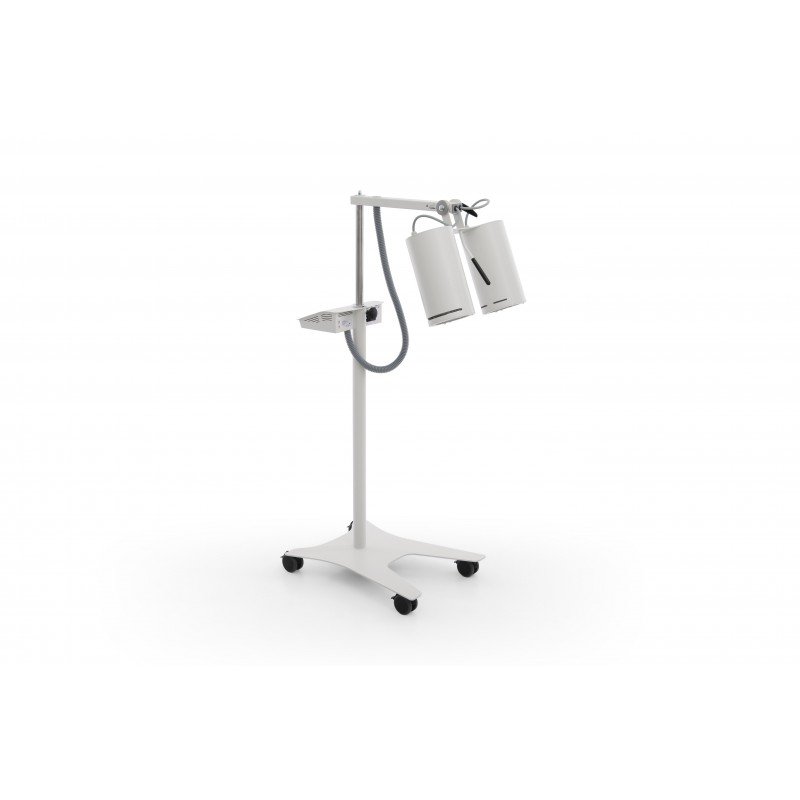

Solmed DUO – infrared therapy lamp

Solmed DUO is a Sollux-type infrared lamp on a height-adjustable stand, with two emitters in the head for a wider irradiated field.

An electronic control panel sets the radiation power and the treatment time, and the head position is adjustable so the beam can be aimed precisely at the treated area.

Key features

• infrared light emission
• 2 emitters in the head
• adjustable head position
• stand height adjusted by gas spring
• the tube has a cooling fan and a filter mounting system
• adjustable radiation power
• treatment time setting
• mobile base with 4 swivel castors (2 with brakes)
• mounting does not require removing the electronics cover

Control panel

• bulb selection buttons
• parameter adjustment buttons (power adjustment, time setting)
• programme button — programming a treatment sequence with different power in 5-minute steps
• Start / Pause — start or briefly pause the treatment
• Stop — stop the treatment
• Example sequence over 30 minutes (power in %): 10, 30, 60, 100, 80, 60

Standard equipment

• bulb (2 pcs)
• red filter (2 pcs)
• blue filter (2 pcs)
• large protective goggles for the operator (1 pc)
• small protective goggles for the patient (1 pc)
• mounting kit
• user manual

Optional equipment

• green filter
• orange (amber) filter

Technical data

• Power supply: 230 V, 50 Hz
• Bulb power: max. 375 W
• Power consumption: max. 770 W
• Fuses: 2 x T4A / 250 V
• Power setting: 10 - 100 %
• Dimensions (L x W x H): 740 x 480 x 1180-1760 mm
• Weight: approx. 30 kg
• Treatment time: 30 minutes
• Medical device class: IIa
